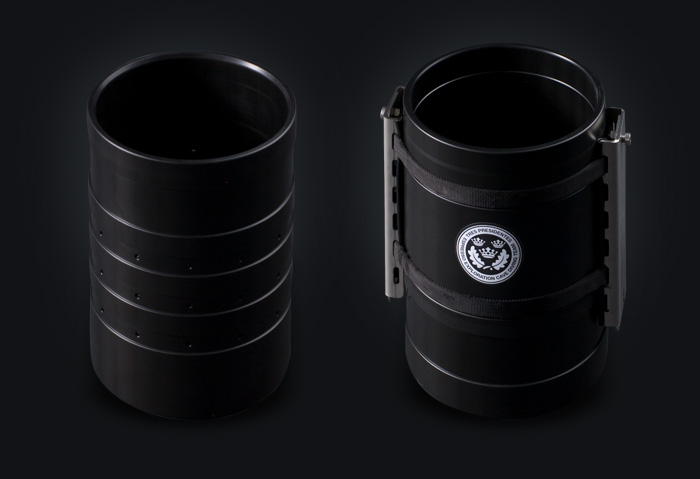

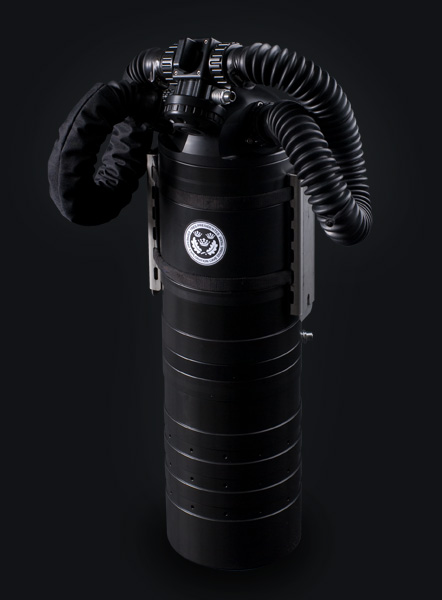

SCR Body
- used material „delrin“
- scrubber container
- frameless fast-lock tank holders
- bellows container
- sealed with O-ring
- ready for double O-ring

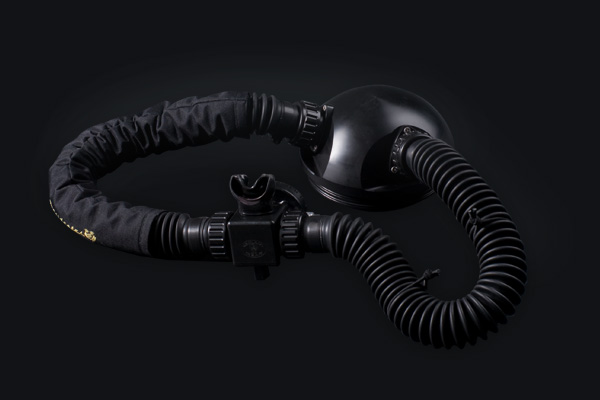

SCR Head
- used material „delrin“
- specially designed round head (PATENTED) for smaller hydrodynamic resistance when using scooters
- sealed with O-ring + stainless steel buckles
- wrap houses with connectors
- integrated OC / SCR mouthpiece
- TP hose cover
- wrap houses with newly designed bayonet connectors and security lock-up system
Show detail

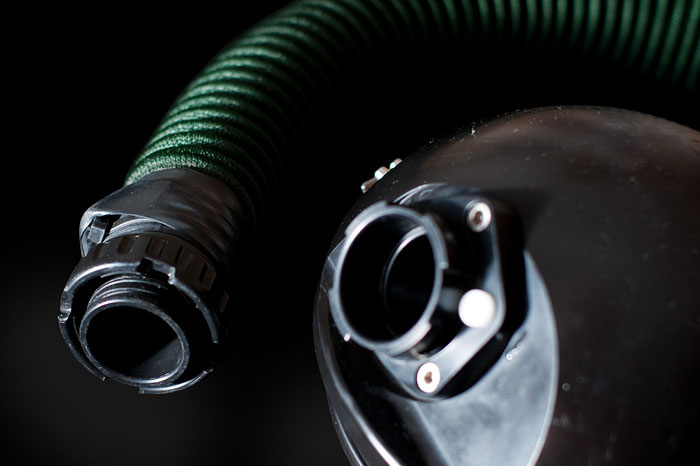

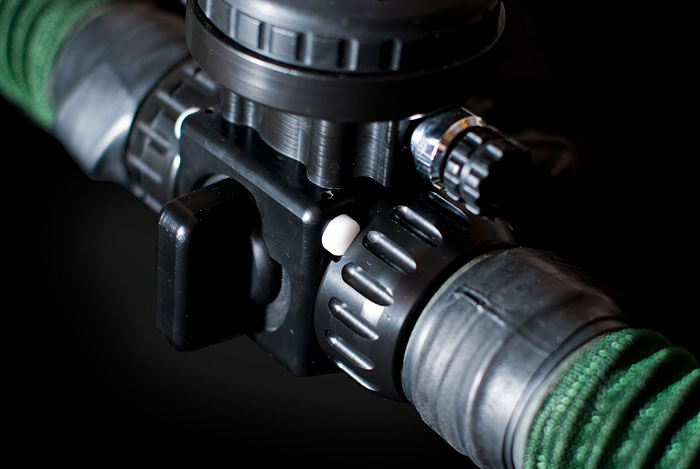

Bayonet detail

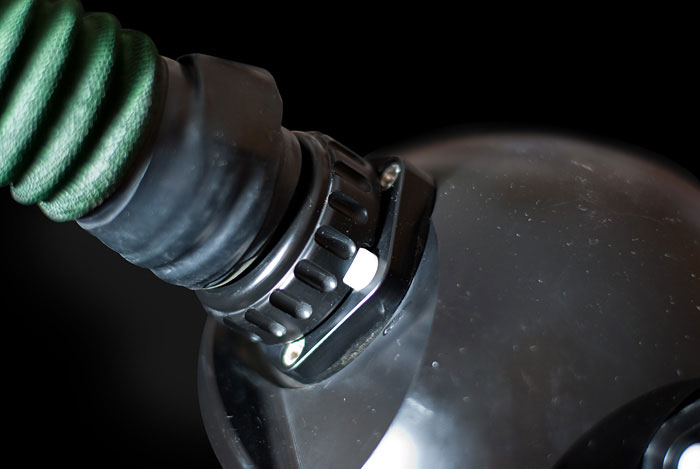

Bayonet detail 2

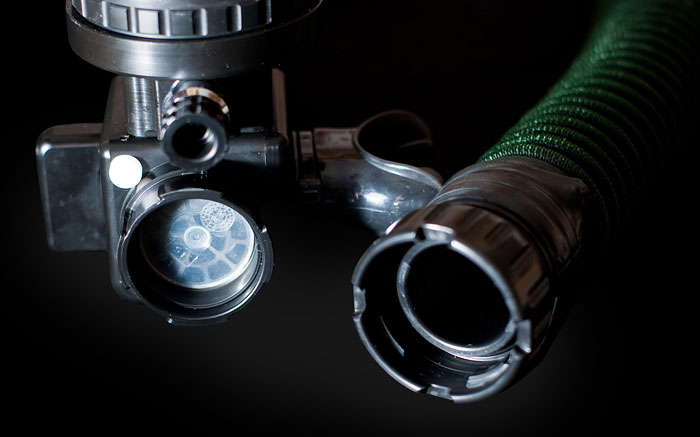

Bayonet detail 3
Bayonet detail 4

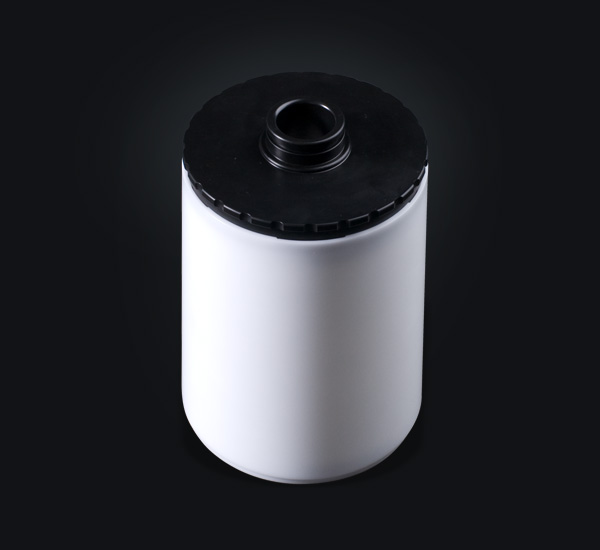

Scrubber
- used material „white delrin“
- 2,5 kg of CO2 scrubber lime
- 5 hours runtime
- closed by „bayonet“ top
- stainless steel screen and spring
- bottom of the scrubber is modified for more efficient air circulation

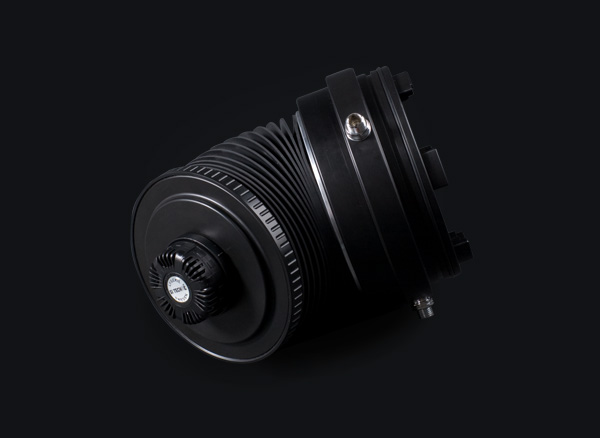

Central Head & Bellows
- used material „delrin“
- specially designed bellows
- approved bellows in the 1:8 ratio
- fast-lock bellows connection without screws
- 2 x standardized gas injection piece
- doubled back diaphragm
- water trap
- standardized expiratory valve
